Description

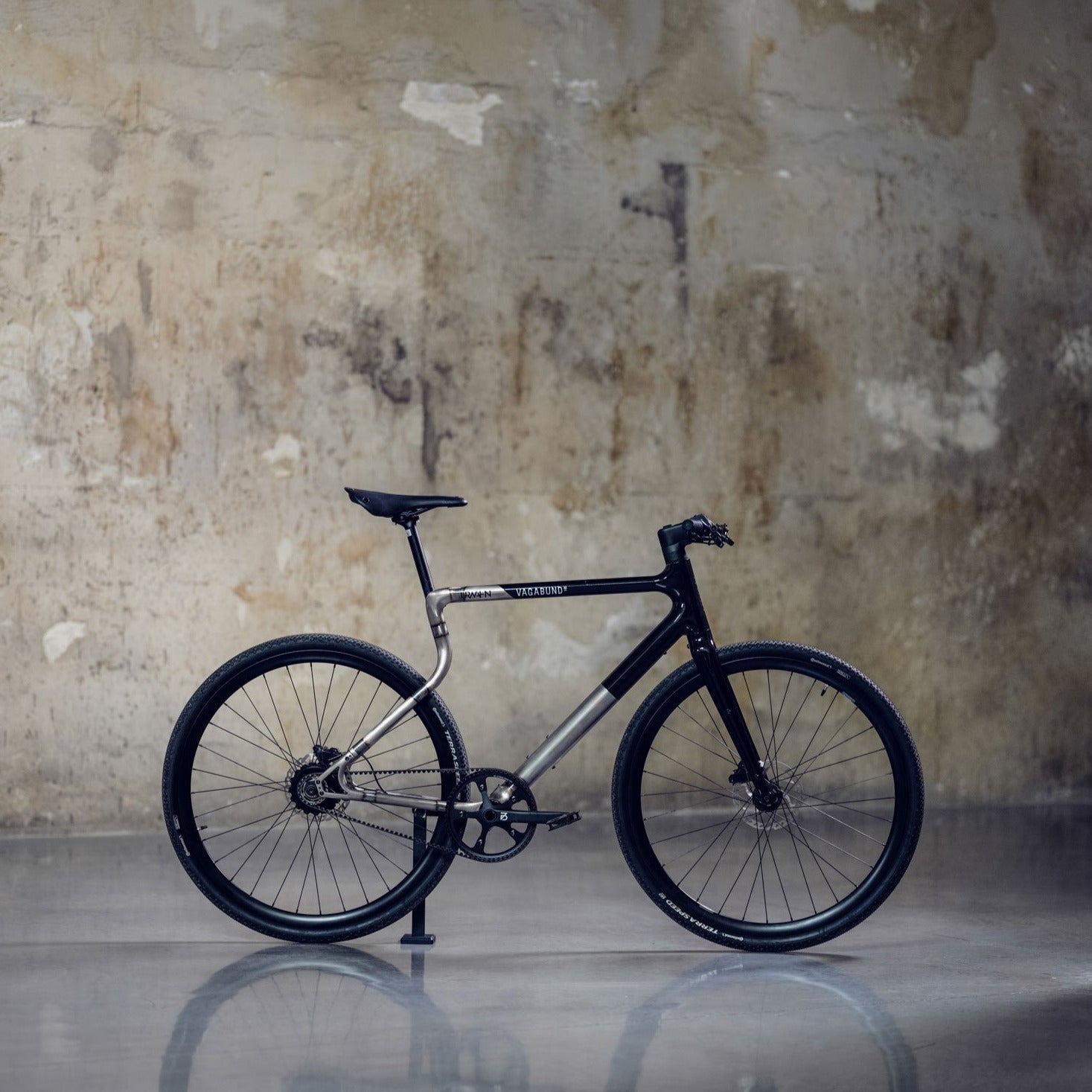

urban e-bike x Urwahn x Vagbund "Platzhirsch" Urban E-Bike – Vagabund MotoMANUFACTURING: 7 9 weeks The majestic Platzhirsch is bursting with strength and lives up to his name. With his electric backpacks, the purist claims all the hells of the urban jungle. The organic shape of the steel frame guarantees noticeable driving comfort and gives the Platzhirsch an unmistakable look a unique feast for the eyes! The precise electric drive adapts to your driving style and conjures a wide smile on your face thanks to the strong 40
MANUFACTURING: 7-9 weeks
The majestic Platzhirsch is bursting with strength and lives up to his name. With his electric backpacks, the purist claims all the hells of the urban jungle. The organic shape of the steel frame guarantees noticeable driving comfort and gives the Platzhirsch an unmistakable look - a unique feast for the eyes!
The precise electric drive adapts to your driving style and conjures a wide smile on your face thanks to the strong 40 Nm torque at the rear wheel. For the medium distance, the electrified all-rounder is equipped with a battery discreetly integrated into the down tube and has a range of up to 80 km. For longer journeys through urban areas, a range extender with an extension of up to 60 km can be optionally connected. The Platzhirsch is navigated in a contemporary, digital way via an app, while emerging dangers are directly targeted via the bright LED headlights.
Incidentally, the frame of our Platzhirsch is developed and produced entirely in Germany. Each piece that is released into the wild enhances the regional value and makes a sustainable contribution to environmentally conscious mobility.
- puristic CrMo steel frame with elastic rear suspension
- powerful MAHLE ebikemotion rear wheel hub motor
- discreetly integrated MAHLE ebikmotion battery
- Mounting points for water bottle holder or range extender
- optional range extender available for extended trips
- LightSKIN front headlight integrated into the handlebar
- LightSKIN tail light integrated into the seat post
- integrated theft protection thanks to Hexlox component security
- Brooks cambium C15 carved all weather saddle & Bar Tape Rubber
- seamlessly integrated seat clamp
- strong flatmount hydraulic brakes
- low maintenance Gates Carbon belt drive
- grippy Continental tires with puncture protection & black reflective stripe
- internal cable routing
- integrated rack and mud guard mounting system
A = Head Tube
B = Top Tube
C = Seat Tube
D = Chain Stray
E = Bottom Bracket
F = Wheelbase
G = Stand Over
H = Seat Tube Diameter
J = Seat Tube Angle
K = Head Tube Angle
L = Fork Lenght
M = Fork Offset
| Size | A | B | C | D | E | F | G | H | J | K | L | M |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 135 | 535 | 520 | 405 | 45 | 971 | 820 | 27,2 | 73° | 73° | 401 | 45 |
| S | 150 | 555 | 535 | 405 | 45 | 991 | 834 | 27,2 | 73° | 73° | 401 | 45 |
| M | 165 | 575 | 550 | 405 | 45 | 1011 | 849 | 27,2 | 73° | 73° | 401 | 45 |
| L | 180 | 595 | 565 | 405 | 45 | 1031 | 863 | 27,2 | 73° | 73° | 401 | 45 |
| XL | 195 | 615 | 580 | 405 | 45 | 1051 | 877 | 27,2 | 73° | 73° | 401 | 45 |
| frame sizes | A - body height | B - standover |
|---|---|---|
| XS | 162 - 168 | 77 - 80 |
| S | 169 - 176 | 81 - 84 |
| M | 177 - 183 | 85 - 88 |
| L | 184 - 190 | 89 - 92 |
| XL | 191 - 200 | > 93 |
* All dimensions are in millimetre. All size and frame parameters are merely recommendations as every human has individual properties & preferences. Please note that the overhang height should match your standover. Experienced riders can ride frames with larger overhang heights.
